How to Measure Countertop Overhang Correctly

A countertop can look perfectly sized in a showroom and still feel wrong once it is installed. Too little overhang leaves cabinet doors and drawers exposed. Too much can interfere with traffic, require visible brackets, or create a weak edge in stone. To measure countertop overhang correctly, start with the cabinet box - not the cabinet door, drawer front, or handle.

This small detail affects the finished look, usable workspace, seating comfort, and support requirements for a kitchen island, perimeter run, bathroom vanity, or bar top. A reliable measurement also helps your cabinet supplier, countertop fabricator, and installer quote the project accurately before materials are ordered.

What countertop overhang means

Countertop overhang is the horizontal distance the countertop extends past the front, side, or back edge of the cabinet base or support structure. In most kitchens, the front countertop edge projects beyond the cabinet box to protect the doors and drawers below while creating a clean, finished reveal.

Do not measure from the face of a shaker door or drawer front. Those components already extend beyond the cabinet box, and their depth can vary by cabinet style. Measuring from them can make the countertop projection appear much smaller than it really is.

For a standard base cabinet, the cabinet box is commonly 24 inches deep. A finished countertop is often about 25 1/2 inches deep, creating roughly a 1 1/2-inch front overhang. That is a common starting point, not a rule for every project. Door style, wall conditions, backsplash details, countertop thickness, and appliance clearances can all change the final dimension.

How to measure countertop overhang correctly

Use a tape measure, a straightedge, a pencil, and a notepad or digital plan. Measure after the cabinets are set in their final positions whenever possible. If you are measuring for an estimate before installation, use the cabinet specifications and clearly identify any areas where walls are not square.

1. Find the cabinet box face

Open a cabinet door or look underneath the countertop area to locate the true front edge of the cabinet box. This is the vertical plane that supports the countertop. On frameless cabinets, it is generally the front edge of the cabinet side panels. On framed cabinets, use the front face frame as the reference point.

Mark that plane lightly on the top of the cabinet or use a straightedge held vertically against it. This gives you a consistent starting point across the entire run.

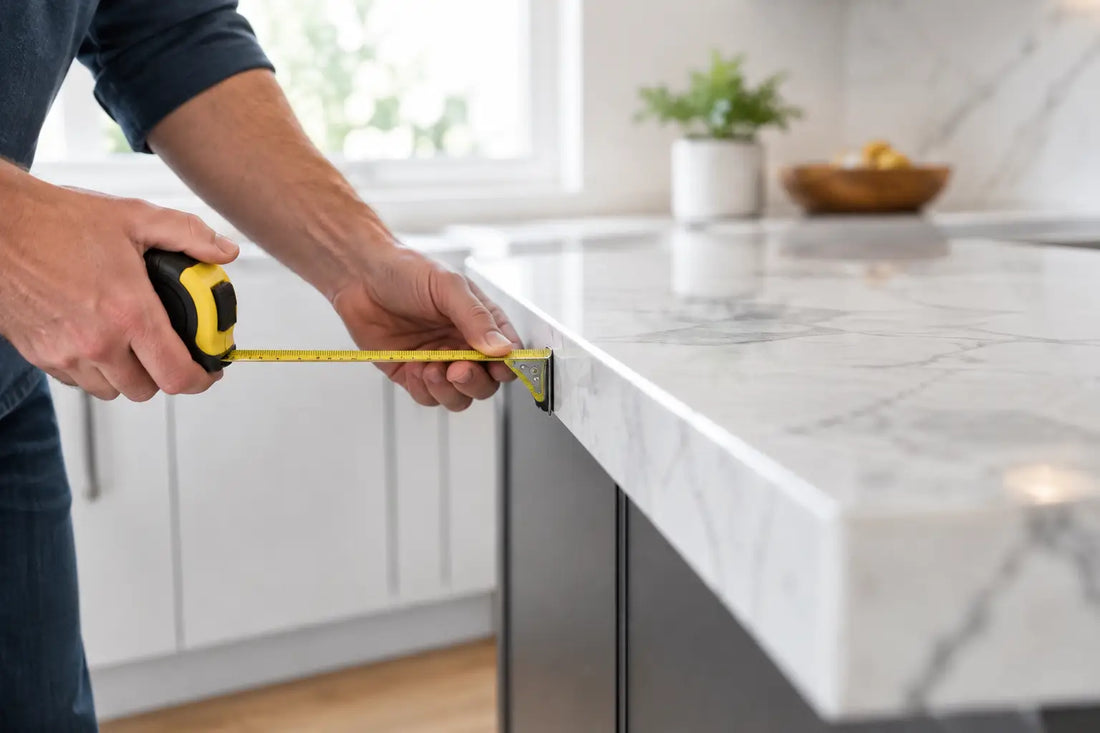

2. Measure straight out to the countertop edge

Hold the tape measure perpendicular to the cabinet face and measure horizontally to the finished countertop edge. Do not measure diagonally around a rounded or eased edge. The measurement should represent the actual projection from the cabinet support to the furthest usable countertop edge.

Take measurements near both ends of the cabinet run and at the center. If those measurements differ, the cabinets may not be aligned, the wall may be out of square, or the countertop edge may not run straight. Small differences can be normal, but larger variations should be addressed before fabrication.

3. Measure side and back overhangs separately

A countertop may overhang in more than one direction. At an exposed cabinet end, measure from the side panel or finished end panel to the countertop edge. At a peninsula or island, measure each exposed edge independently.

Back overhang is especially relevant when a countertop meets a wall, backsplash, or plumbing wall. A small gap may be needed to accommodate an uneven wall, while a full-height backsplash or wall panel can change how the countertop is templated. Never assume the front, side, and back projections will all match.

4. Record the countertop thickness and edge profile

A 2 cm quartz top, a 3 cm quartz top, and a laminated countertop can have different edge treatments even when the horizontal overhang is the same. Thickness affects the visual weight of the edge and may influence bracket placement, waterfall details, and appliance clearances.

Write down the material, thickness, and intended edge profile with each measurement. This keeps the cabinet plan and fabricator instructions aligned, particularly on larger projects with islands, bar seating, or multiple countertop materials.

Standard overhangs for kitchen cabinets and vanities

For a typical kitchen base cabinet, a front projection of about 1 to 1 1/2 inches beyond the cabinet box is common. This usually clears door and drawer fronts while keeping the countertop proportionate to standard cabinetry.

Bathroom vanities often use a similar front overhang, though the best size depends on the vanity depth, sink selection, faucet location, and whether the top has an integrated backsplash. A shallow vanity may need careful planning so the sink does not feel crowded and the faucet has enough room behind it.

Exposed sides can use a modest overhang, often around 1 inch, when the top extends beyond an end panel. The exact dimension should coordinate with trim, finished panels, and nearby walls. In a tight kitchen, even a small side projection can affect a walkway or the swing of an appliance door.

These dimensions are practical starting points. The correct choice depends on the cabinet collection, countertop material, and layout rather than a single universal number.

Measuring an island or bar seating overhang

Seating overhang is measured from the back of the supporting cabinet or knee wall to the outer edge of the countertop where someone will sit. This is different from a standard front reveal. It needs enough depth for knees and enough support to carry the countertop safely.

For casual counter-height seating, an overhang around 12 inches can work for a shallow perch. About 15 inches is often more comfortable for everyday use. Bar-height seating may need more knee clearance, while a deeper overhang can make sense for a dedicated eating area. The right depth also depends on stool size and whether the island includes drawers, appliances, or decorative panels on the seating side.

Leave enough space behind each stool for people to sit down and pass through. In an active kitchen, a narrow aisle behind seating creates a daily frustration even when the countertop itself is correctly sized. Plan the countertop projection together with the aisle, not as a separate decision.

When countertop support is required

The farther a countertop extends beyond its cabinet support, the more carefully it must be engineered. Quartz, granite, marble, porcelain, solid surface, wood, and laminate do not perform the same way. A thick quartz slab may span differently than a laminated top with a built-up edge, and natural stone can have veins or weaker areas that affect support planning.

For a standard 1 to 1 1/2-inch front overhang, separate brackets are generally not needed because the cabinet structure supports the top. Seating overhangs and large side projections are different. They may require steel brackets, corbels, hidden support plates, or a properly built knee wall.

Do not select brackets based on appearance alone. Their spacing, depth, attachment method, and load capacity must match the material and the projected overhang. Your countertop fabricator should confirm the unsupported span allowed for the specific slab, thickness, cutouts, and installation method. This is particularly important near cooktops, sinks, seams, and mitered edges, where the material may need additional support.

Common measuring mistakes that create expensive problems

The most frequent mistake is measuring from door fronts rather than cabinet boxes. Another is measuring only one point on a long run and assuming the walls and cabinets are straight. A third is treating a seating ledge like a standard countertop reveal, without planning support or stool clearance.

Also watch for appliance details. A dishwasher may need clearance below the countertop lip. A range location can be affected by surrounding countertop depth. Refrigerator panels, end panels, and decorative legs may change the visible line of an overhang even though the cabinet boxes are the same depth.

If the countertop includes a waterfall end, mitered edge, or flush-mounted accessory, provide those details before the template is created. These features can alter where the fabricator measures and how the slab is cut.

Check measurements before fabrication

Before a countertop is cut, confirm the final cabinet layout, finished end panels, appliance openings, sink and cooktop locations, wall conditions, and seating support plan. Cabinets should be level, securely fastened, and in their permanent positions. A countertop fabricator can template more accurately when the supporting structure is complete.

For homeowners, bringing cabinet dimensions, a rough room plan, and photos to a design consultation can prevent guesswork early in the project. For contractors and designers, a clear overhang schedule on the plan helps keep cabinet, countertop, and installation crews working from the same expectations.

A countertop should feel intentional from every angle. Measure from the cabinet box, verify each exposed edge, and confirm support before fabrication. If you need cabinet and countertop guidance for a renovation or build, ARK Building Materials can help you coordinate practical selections before your project moves to installation.
